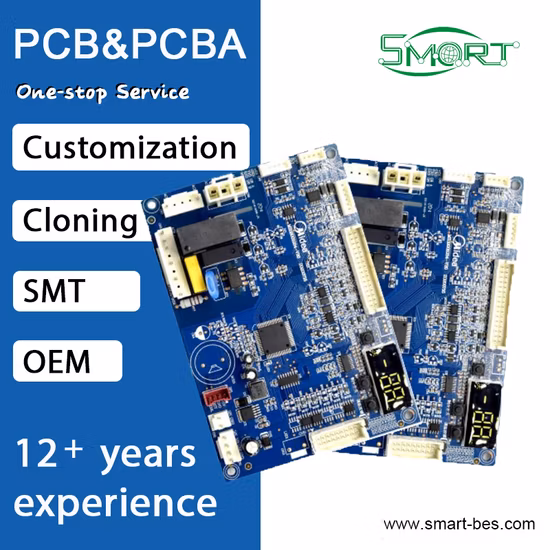

Custom High Quality High Density Multilayer Pcbas Manufacture OEM PCB Assembly PCBA Manufacturer

Basic Info.

Base Material	Copper
Insulation Materials	Organic Resin
Brand	OEM
Transport Package	Carton Box
Specification	200 PCS/CTN
Trademark	Customer′s brand
Origin	China

Product Description

Shenzhen Jingxin Electronic Technology Co., Ltd. is a professional enterprise dedicating to PCB and PCBA manufacturing for 20 years, providing professional IEM electronic manufacturing services for customers in various fields around the world. Since its establishment in 2002, the company has accumulated a group of engineers with more than ten years of manufacturing experience and professional electronic components purchasing team. With ten years of professional spirit, providing professional engineering services (PCB layout design, SMT process technology solutions, etc.) → PCB manufacturing → electronic components purchase → supply chain management → PCBA manufacturing (SMT and DIP) → one stop integrated manufacturing service from test, maintenance, aging test and assembly to directional development.Our more than 800 employees are proud to serve customers all over the world in various fields including home appliance electronics, aerospace, medical equipment, industrial automatic control, new energy, automotive electronics, wearable device, 5G communication, drone and LED display, etc.

PCB capabilities:
-1500mm long board PCB (FR4 and aluminium)

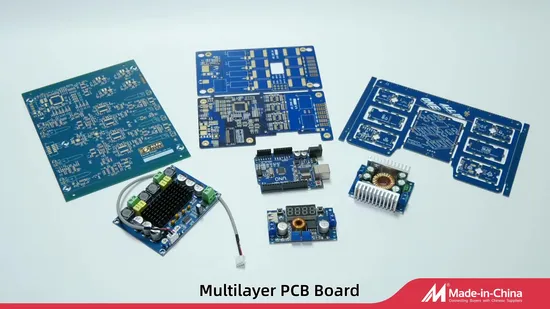

- FR4, 1 to 49 layer PCB either with HDI.
- 2 layer aluminium PCB
- Quick turn: 2L with 24 hours, 4L with 48 hours, 6L with 72 hours, 8L with 96 hours
- No min. order quantity, even 1 piece is workable.

PCBA capabilities:
-Components sourcing
-SMT & DIP assembly including BGA assembly
-Accepted SMD chips: 01005, BGA, QFP, QFN, TSOP
-Component height: 0.2-25 mm
-Min packing: 0201
-Min distance among BGA: 0.25-2.0 mm
-Min BGA size: 0.1-0.63 mm
-Min QFP space: 0.35mm
-Pick-placement precision: ±0.01 mm
-Placement capability: 0805, 0603, 0402, 0201
-High pin count press fit available
-SMT capacity per day: 7,000,000 point

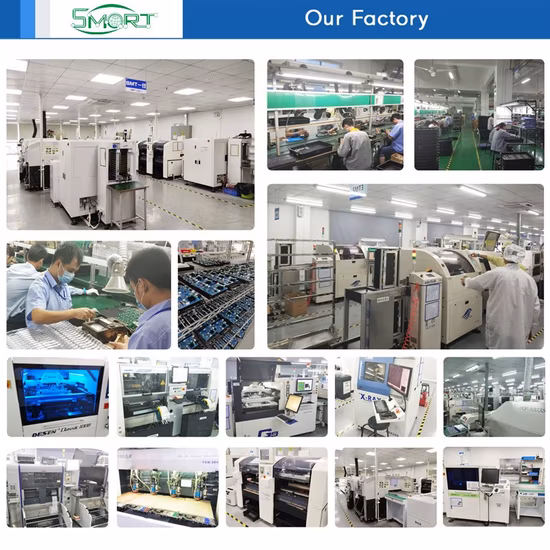

For now we located in F1- F5 Building 17, Hongfa Industrial Park, Shiyan, Baoan District, Shenzhen. We have dust-free workshop of 10000 m2, over 600 employees, more than 30 production lines of SMT, DIP, automatic welding, aging test and assembly. We have equipment of over 50 SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine (SPI), 12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, laser print machine etc. Daily production capacity 40 million points.We strictly enforce international quality system standards for management, we have obtained ISO9001 quality system certification, ISO 14001 system certification and five stars DEMONSTRATION ENTERPRISE OF AN INTEGRITY BRAND.

FAQ

Q1.What is needed for quotation?

A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

Q4. MOQ?
A: There is no MOQ in JXE PCBA. We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Q6. Do you accept process materials supplied by clients?

A Yes, we can provide component source, and we also accept component from client
